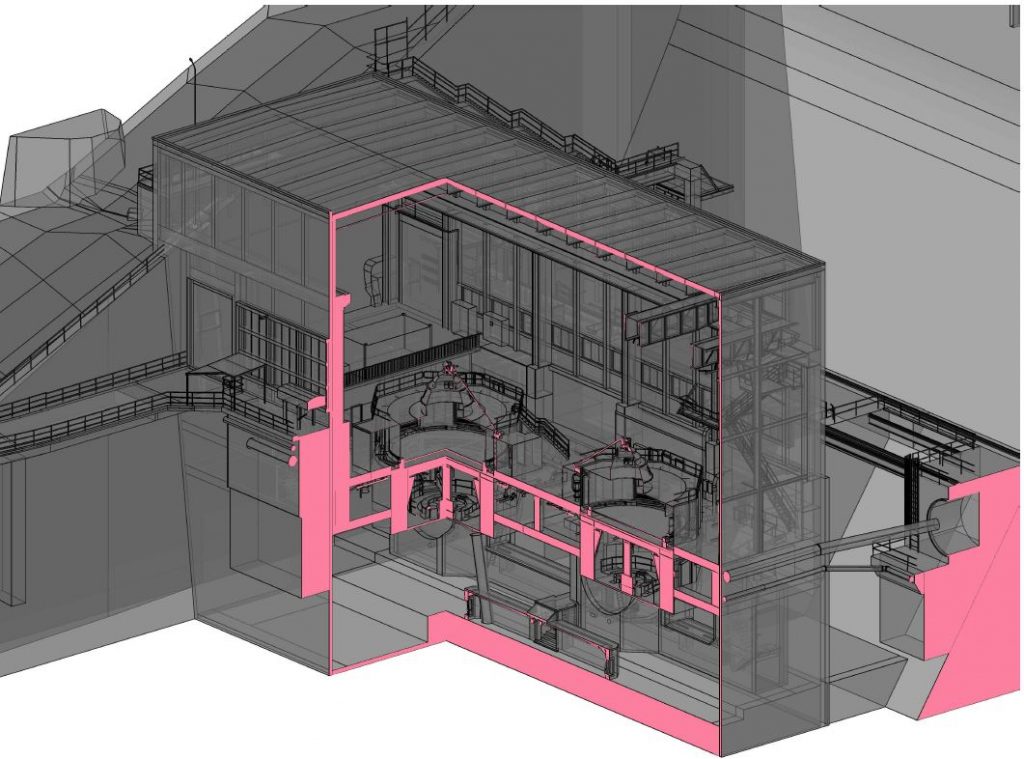

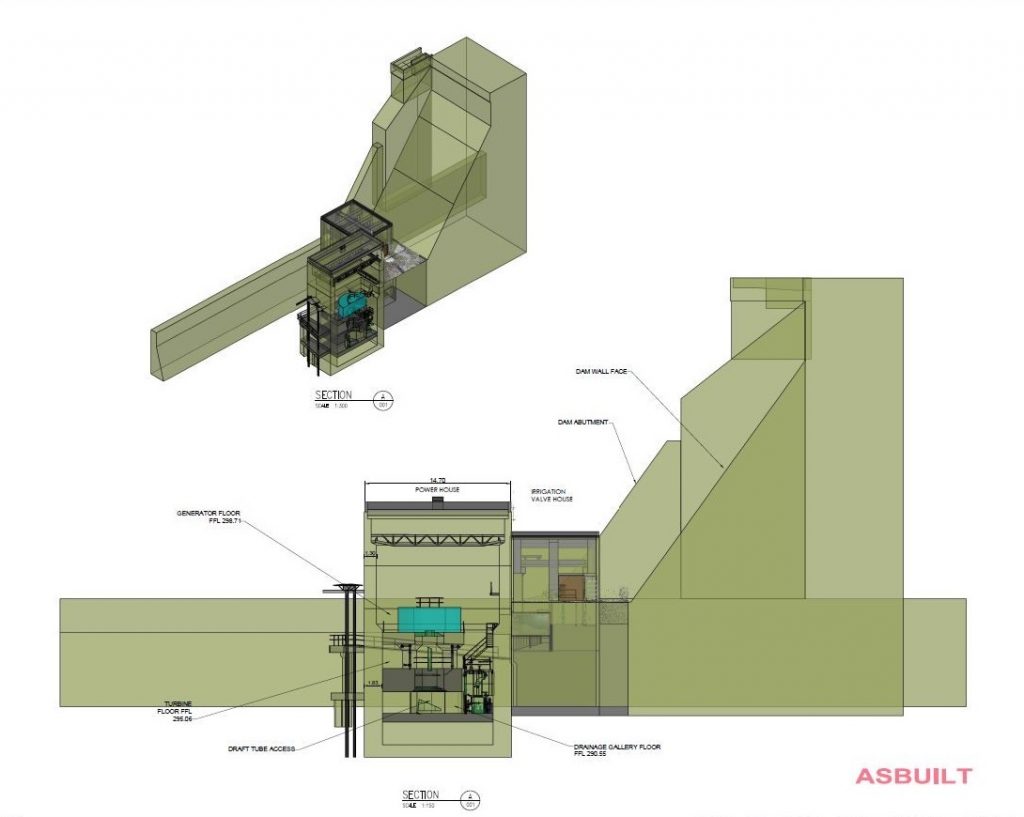

Our client engaged Cheal Surveyors to 3D capture their Hydro Station facilities at three locations being Keepit, Hume and Burrinjuck within the state of New South Wales. The clients requirement was to capture the entire exterior and interior of each of the facilities and deliver a 3D CAD solid model to import to SolidWorks software.
Our 3D Scanning operator captured all of the information required within one week. As well as the CAD solid model output we also delivered FARO Webshare 2Go files which enables the client to view and interrogate (extract measurements) from the imagery captured with the scanner. This is beneficial in that it enables the engineering team to view and navigate any part of the facility without the need to visit the site.
